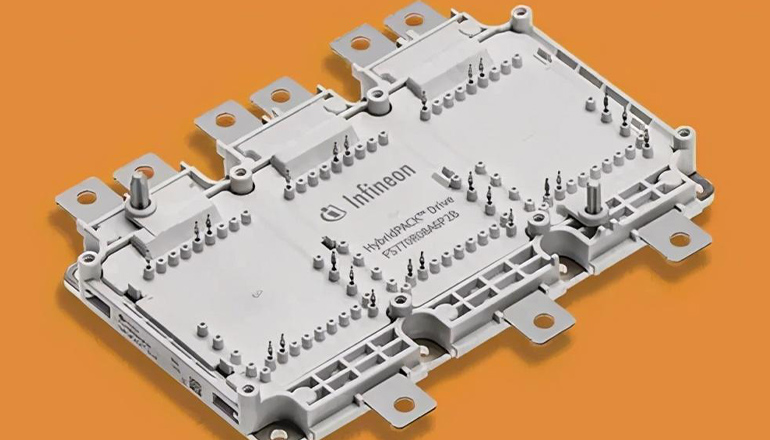

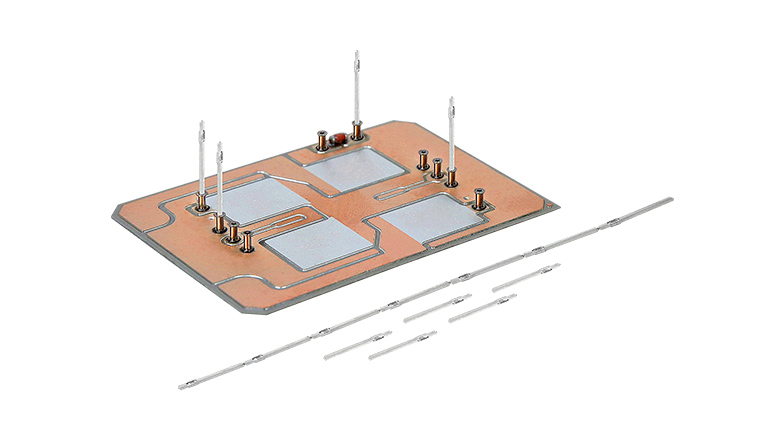

The equipment is applicable to the chain-packed square shaped or pressfit pin of power module based on sic/si in communication.aerospace,automoble.new-enerevindustrv,(Rapid and stable production with low materialconsumption and hieh cost-pertormanceThe machineinserts the pins into the specified hole ofthe DBc with high accuracy and eticiency after cuttingthe chain-packed pin bvcam system driven by the servo motor, After callbrating pcb by vision system,the machine can monitor real time inserting statusincluding inserting force ,position etc during inserting pin. The machine can realize production intelligently with the reliable systemand the function ofmonitoring ,programming,diagnosing and operation
·2D&3D visions ensure accruracy of pin position and perpendicularity

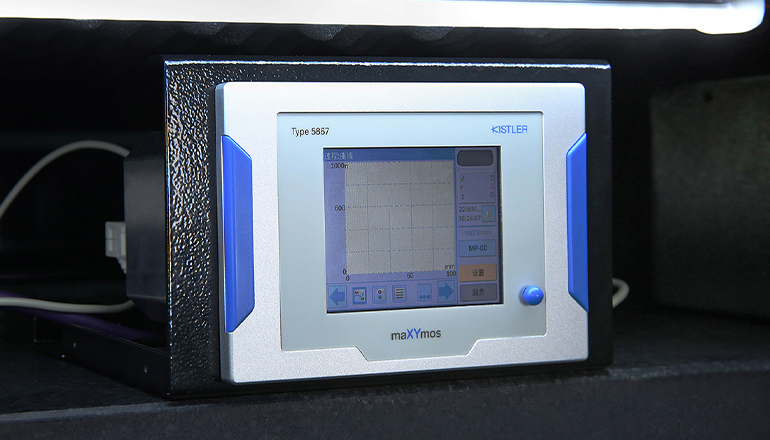

·Insertion force monitoring provides real-time feedback& bottom vision for position precision

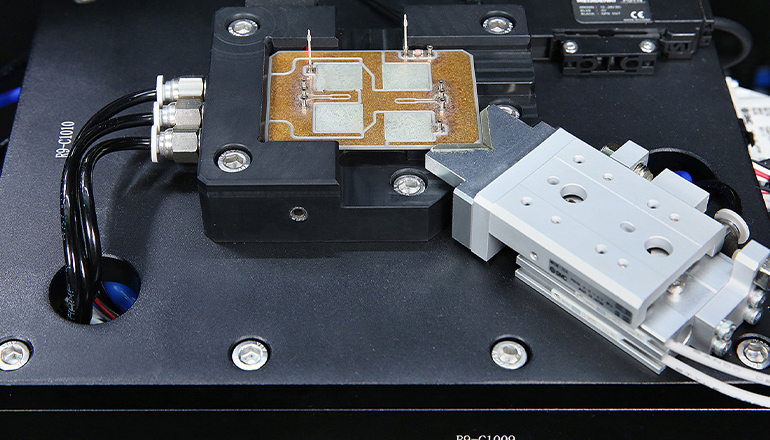

·360°free rotation for platform with 0.01° increments
·Intergrated mable frame design with linear motor reaches up to um grade precision and efficency

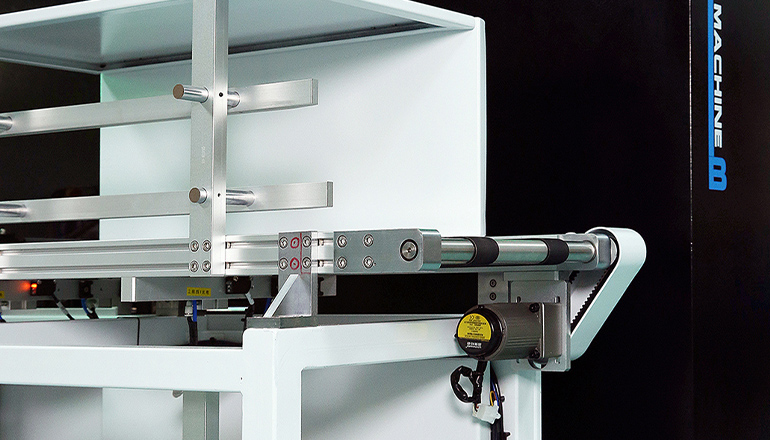

·Magazine mode feedingfor DBCloadingand unloadingin semiconindustry
·Connection with MES byQR code recognition
| Parameter Name | Parameter Details |
|---|---|
| Applicable DBC dimension | Customization |
| Production cycle time | 0.5S - 2S/PC |
| Insertion speed | 0.5S - 2S/PC |
| Insertion angle | Free rotation for 360 degrees |
| Repetition accuracy | ±0.01mm |
| Communication | RS485/RS232/SECS/GEM |
| Power consumption | 220V single-phase 12KW |
| Machine dimension | L2100*W1250*H1700(mm), Material feeding rack not included |
| Weight | 2200KG |
| Operating temperature | 5 - 40℃ |
| Operating humidity | 10 - 90%RH |
| Environment requirement | Non-corrosive gas |
