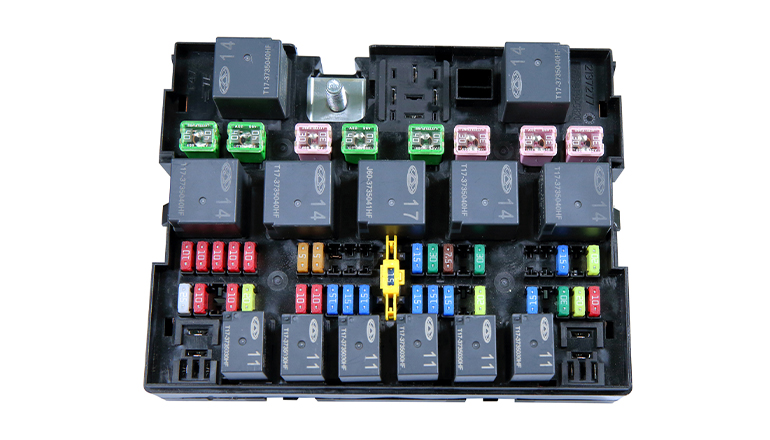

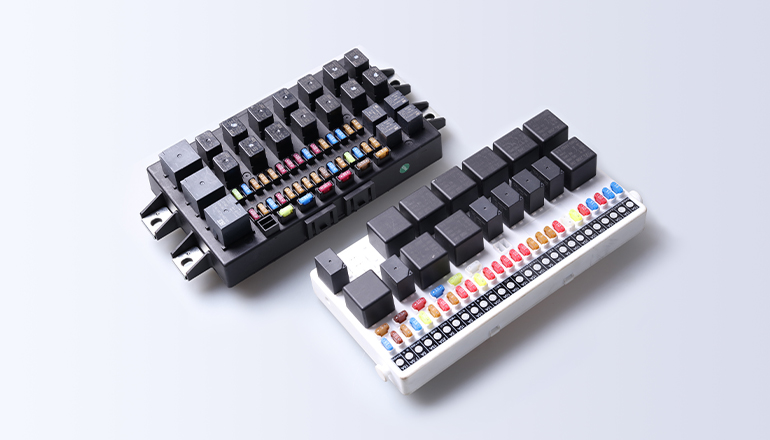

As an automatic assembly production line for automotive fuse box, intelligentfuse boxes, and BCM boxes, Machine is used for theautomatic assembly and production offuse boxes,intelligent fuse boxes, and BcM boxes, The whole line adopts compatible vehidepositioning and double speed line transmission, and modular docking of assembly process device to achieve automatic productionofthe entire line, The wire body is mainly composed ofthe following processes, including: automatic liking and oweringofthevehiclautomatic screw locking, automatic laser engraving, automatic product turnover, automatic insertion ofuse strips automaticinsertion ofrelays,FCT,AOl, and vehicle reflow.
·Fullyautomated productionline, minimal human input requirede
·Modulardesign enables easyinstallation and maintenance
·Workstationdata storable and MES-connectable
·One -touch program switch: main unit selects product, other devices auto - adapt
·Broad compatibility: switch carriers fordifferent products
·Customizable option fordifferent requirements

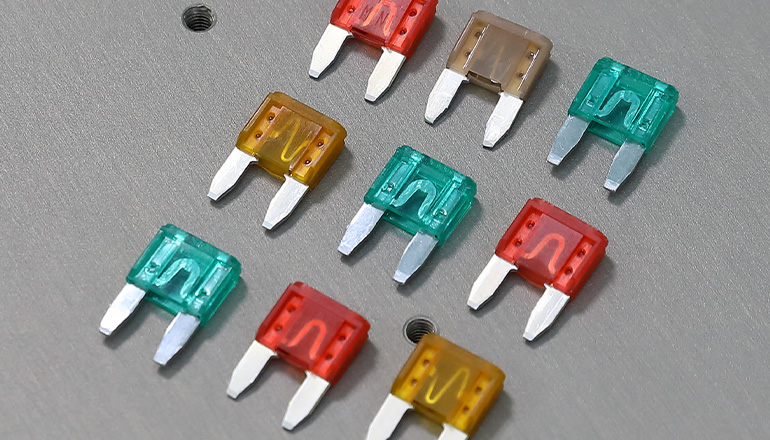

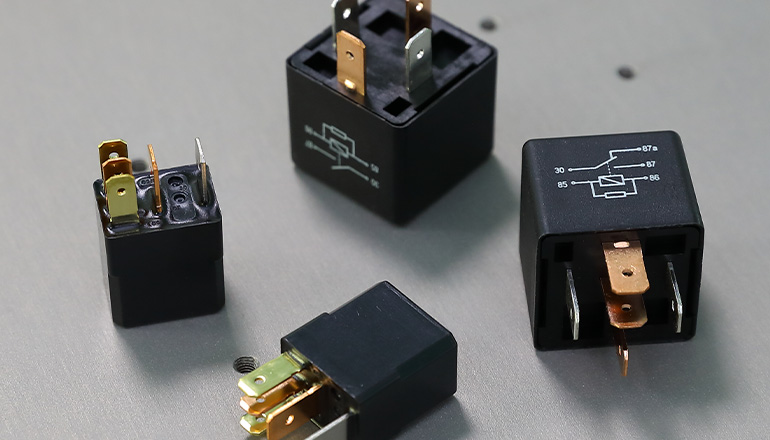

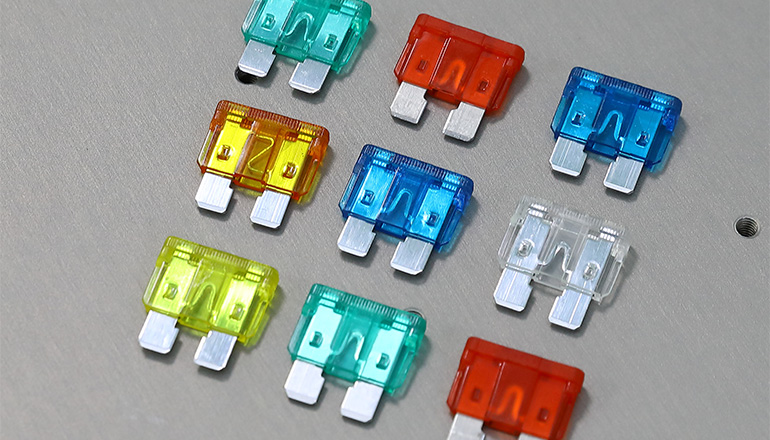

·Compatible with diverse fuse sizes,quick changeoverforclamp
| Parameter Name | Parameter Details |
|---|---|
| Brief description of equipment functions | Realize the fully automated assembly and production of automotive fuse boxes/BCM boxes. |
| Product application scope | Automotive fuse boxes/BCM boxes |
| Overall line size | Approximately L16000xW2600xH1600 |
| Equipment power supply voltage | AC220V 50Hz |
| Total equipment power | Depending on the number of equipment |
| Air source pressure | 0.5 - 0.6MPa |
| Line change time | To be determined |
| Equipment size | Approximately W1000xD1350xH1700 |
| Equipment cycle time | 35S/12PCS |
| Electric screwdriver type | Servo electric screwdriver, monitoring and output of information such as torque, number of turns, time, and abnormalities. |
| Feeding method | Pneumatic blowing feeding |
| Product range | Suitable for all fuse boxes/BCM boxes |
| Module positioning accuracy | ±0.05 |
| Positioning method | High-pixel vision positioning system |
| Product positioning method | Four-side clamping state + downward pressing clamping state |
| Module working range | X-axis: 450mm, Y-axis: 300mm, Z-axis: 150mm |
| Equipment power | 1.5KW |
| Equipment weight | 560KG |
| Communication method | RS485/Ethernet port/SMEMA |
| Equipment size | Approximately W1400xD1000xH1700 |
| Equipment cycle time | 10S |
| Marking range | 250mmx400mm |
| Flipping range | Product width from 100mm - 270mm |
| Control method | Laser engraving: PC host + laser controller; Flipping: PLC |
| Equipment power | 1KW |
| Equipment weight | 350KG |
| Communication method | RS485 Ethernet port/SMEMA |
