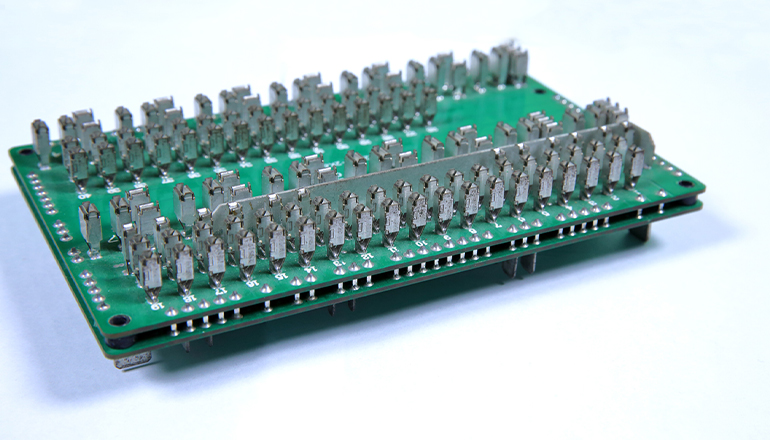

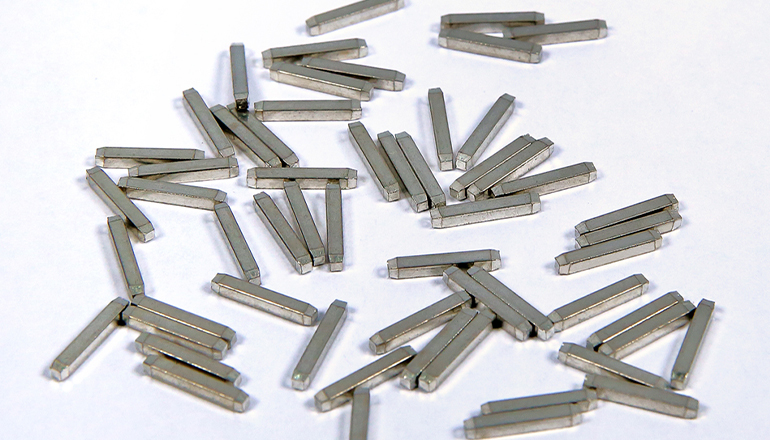

MachineInsertion head picks up the scattered pin andinsertsinto a special plate JlG with vibration feeding. Withcomplete detection and monitoring, it makes easyoperation and production.
MachineInsertion head picks up the scattered pin andinsertsinto a special plate JlG with vibration feeding. Withcomplete detection and monitoring, it makes easyoperation and production.
| Technical Parameters | Parameter Values |
|---|---|
| PCB Size/PCB size max | 50*50 - 300*250mm |
| PCB Conveying Direction/PCB direction | Offline |
| Platform Speed/Platform speed | 70m/min |
| Pin Insertion Direction/Pin direction | 90° Incremental/90°incremental |
| Insertion Speed/Insertion speed | 0.4S/40.4S/PC |
| Communication Method/Communication | RS485/RS232 |
| PCB Loading/Unloading Time/PCB exchange time | Manual Installation/Manual installation |
| Feeding Mode/Feeding type | Bulk Material/Bulk material |
| Number of Insertion Heads/Insertion head | 1 piece |
| Hole Position Correction Method/Hole position recognition | CCD High-Definition Industrial Camera Vision System/CCD high-definition industrial camera vision system |
| Control System/Control system | Industrial Computer + Display Screen with Windows System/Industrial computer + display screen Windows system |
| Equipment Dimensions/Machine dimension | L2070*W1250*H1600(mm) |
| Repeatability Accuracy/Repetition accuracy | X-axis: ±0.018; Y-axis: ±0.018/X-axis:±0.018; Y-axis:±0.018 |
| Equipment Frame Material/Machine frame | Steel Structure/Steel structure |
| Weight/Weight | Approximately 1200KG/About 1200KG |
| Air Pressure/Air pressure | 0.55 + 0.05MPa |
| Equipment Power Consumption/Power consumption | 1500W |
| Power Supply/Supply voltage | AC220 60HZ |
| Operating Temperature/Operating temperature | 5 - 40℃ |
| Operating Humidity/Operating humidity | 10 - 90%RH |
| Environmental Requirements/Environment requirement | No Corrosive Gas/Non-corrosive gas |
