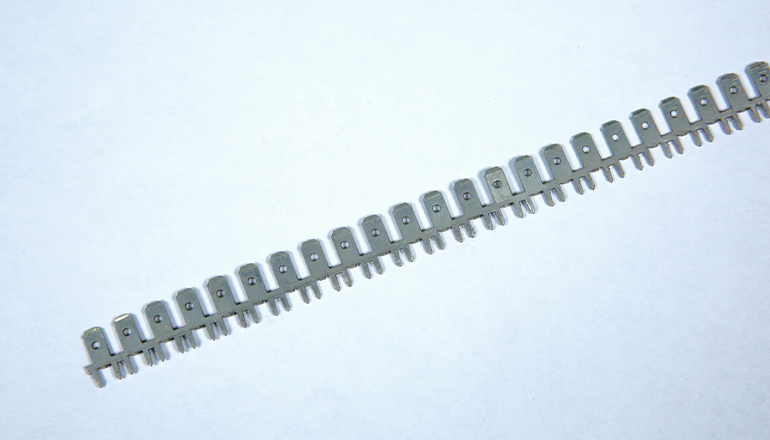

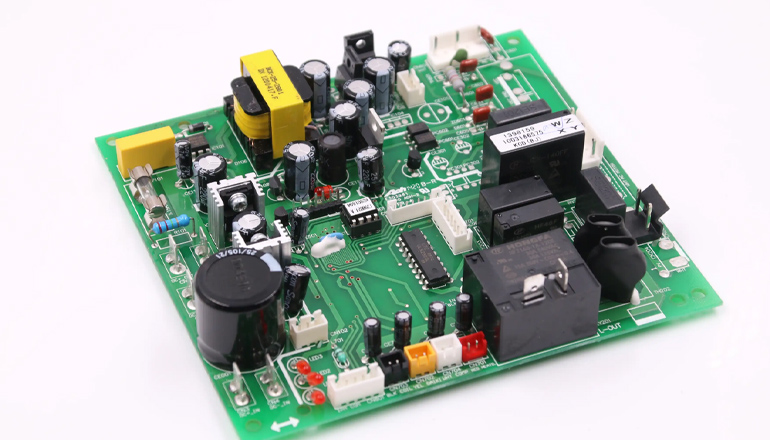

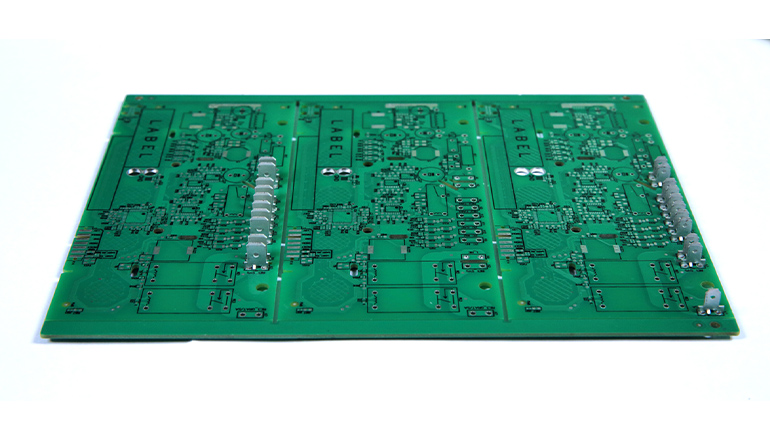

Machine is used to automatically cut the rolled metal pinsinto single pins before they are accurately inserted ontothe PCB byinsertion head on the platform made up by X &Y axis.Steel structure,Monitoring,programing,automaticanalysis and easy operation makes stable and automaticproduction.
Machine is used to automatically cut the rolled metal pinsinto single pins before they are accurately inserted ontothe PCB byinsertion head on the platform made up by X &Y axis.Steel structure,Monitoring,programing,automaticanalysis and easy operation makes stable and automaticproduction.
| Parameter Name | Parameter Details |
|---|---|
| PCB size max | max: 450*350mm |
| PCB direction | L - R; R - L |
| PCB Support | Anvil |
| Platform speed | 70m/min |
| Pin direction | Free rotation between 0 - 90° |
| Insertion speed | 0.5S/PC |
| Communication | RS485/RS232 |
| PCB exchange time | 6S |
| Feeding type | Rolling |
| Insertion head | 1 - 2/up to 2 |
| Hole position recognition | CCD high-definition industrial camera vision system |
| Control system | Industrial computer + display screen Windows system |
| Machine dimension | L2100*W1250*H1600(mm) |
| Repetition accuracy | ±0.018mm |
| Machine frame | Steel structure |
| Weight | About 1200KG |
| Air pressure | 0.55 ± 0.05MPa |
| Power consumption | 1500W |
| Supply voltage | AC220V 60Hz |
| Operating temperature | 5 - 40℃ |
| Operating humidity | 10 - 90%RH |
| Environment requirement | Non-corrosive gas |
