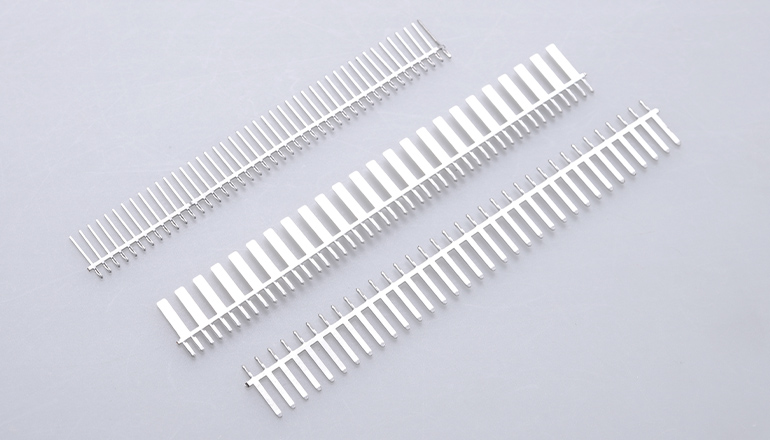

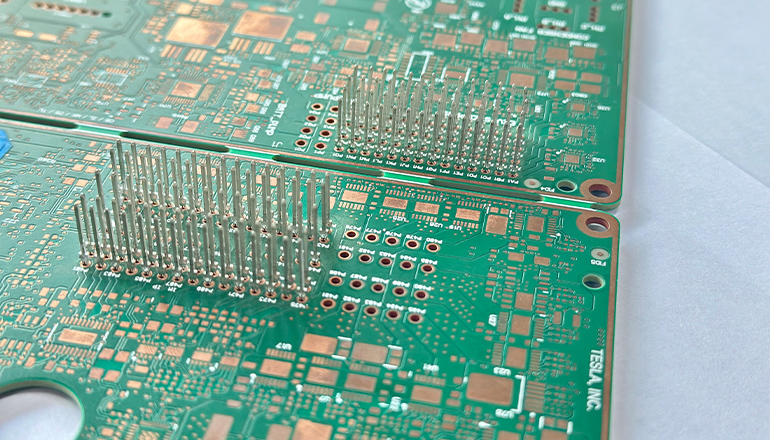

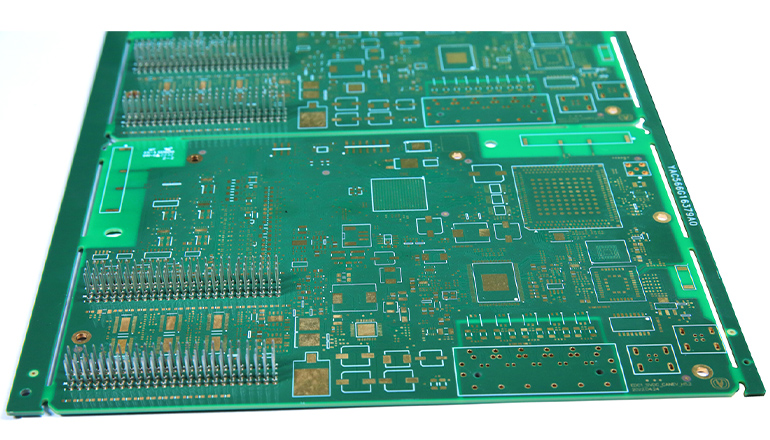

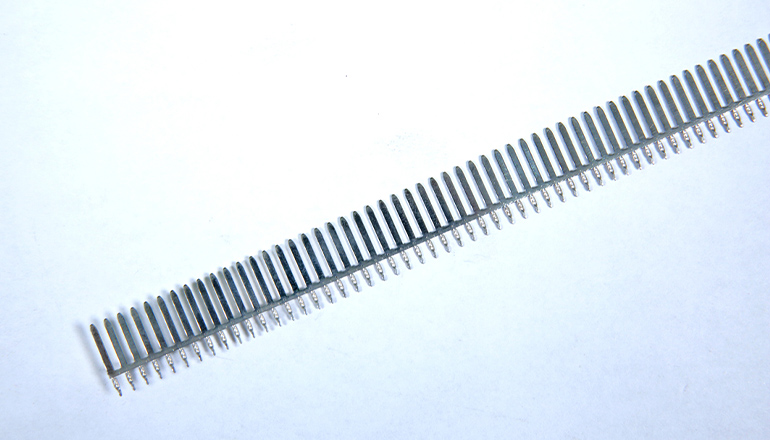

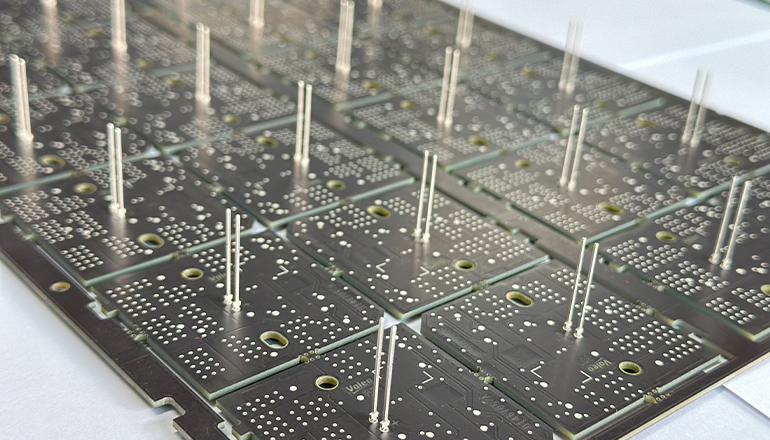

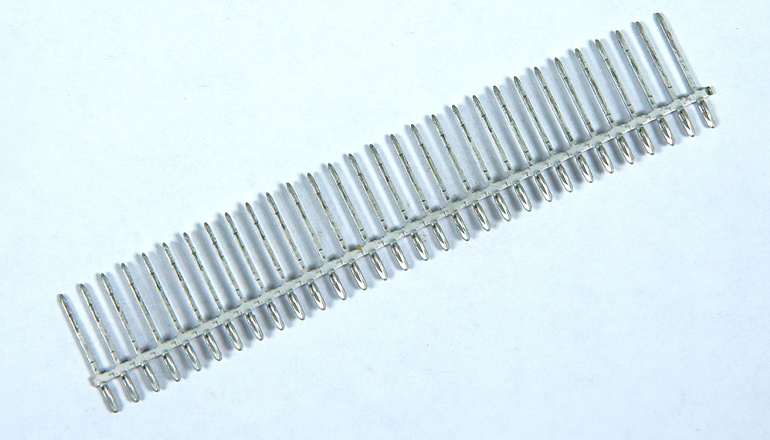

The machine is used to automatically cut the rolled metal pins into a single pin before they are accurately insertedonto the PCB driven by cam mechanism with servo motor, During the process, position is corrected by camera firstand insertion status is monitored in real-time, including insertion force,insertion depth etc. Monitoring.programming, automatic analysis and easy operation make stable and automatic production.
·Marbleframeensures the perpendicularity,flatness, parallelism and accuracy
·Stable Xand Y axis driven by servo motor
·CAM structure ensures high productivity and repetitive precision
·Real-timeinsertion force monitoringachieves high-quality production with vision data
·AutomaticallyPCBlane width adjustment
·AutomaticallyPCB thickness detection
·Connection with MES byQR code recognition
| Parameter Name | Parameter Details |
|---|---|
| PCB size max | max: 350*350mm |
| PCB direction | L - R; R - L |
| PCB Support | Anvil |
| Platform speed | 70m/min |
| Pin direction | Standard: 90° inc; option: specified angle |
| Insertion speed | 140 - 220 Pcs/Min |
| Communication | RS485/RS232 |
| PCB exchange time | 4S |
| Feeding type | Rolling |
| Insertion head | 1 - 3/up to 3 |
| Hole position recognition | CCD high-definition industrial camera vision system |
| Control system | Industrial computer + display screen Windows system |
| Machine dimension | L2310*W1560*H1740(mm) |
| Repetition accuracy | ±0.01mm |
| Machine frame | marble |
| Weight | 1800KG |
| Air pressure | 0.55 ± 0.05MPa |
| Power consumption | 2000W |
| Supply voltage | AC220V 60Hz |
| Operating temperature | 5 - 40℃ |
| Operating humidity | 10 - 90%RH |
| Environment requirement | Non-corrosive gas |
