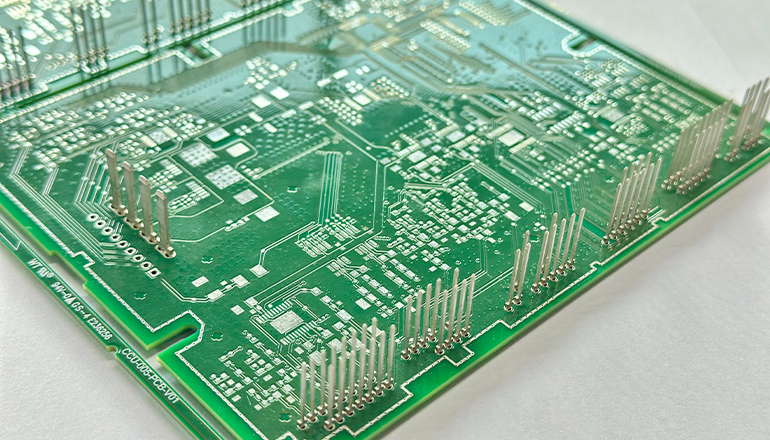

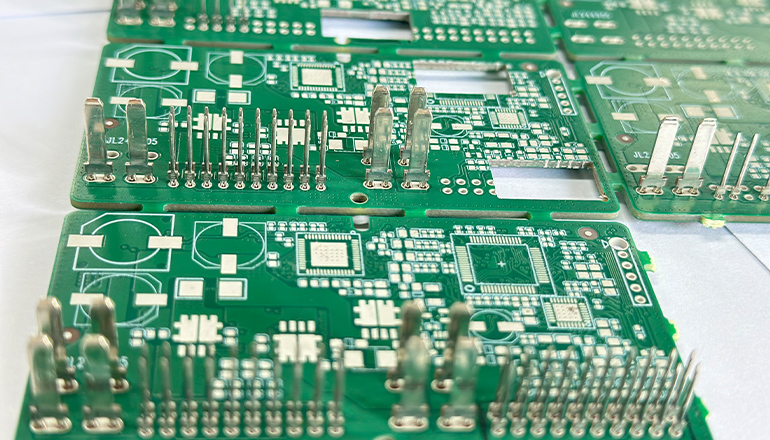

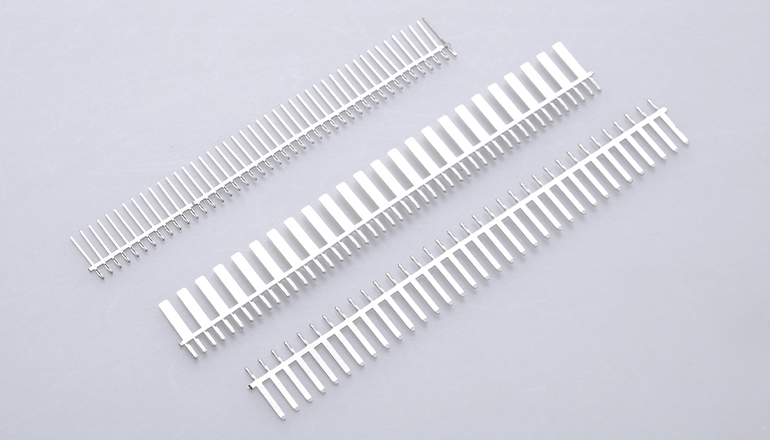

The machine is used to automatically cut the rolled metal pins into a single pin before they are accuratelyinsertedonto the PcB driven by cam mechanism with servo motor, Duringthe process, position is corrected by camera firstand insertion status is monitored in real-time,includinginsertion force,insertion depth etc. Monitoring,
programming,automatic analysis and easy operation make stable and automatic production.
·Marble frame ensures the perpendicularity,flatness, parallelism and accuracy
·Stable Xand Y axis driven by servo motor
·CAM structure ensures high productivityand repetitive precision
·Connection with MES by QR code recognition
·Real-timeinsertion force monitoringis available to achieves high-quality production
| Parameter Name | Parameter Details |
|---|---|
| PCB size max | max: 350*350mm |
| PCB direction | L - R; R - L |
| PCB Support | Anvil |
| Platform speed | 70m/min |
| Pin direction | Standard: 0 - 90° increment; Option: Special angle |
| Insertion speed | 140 - 220 Pcs/Min |
| Communication | RS485/RS232 |
| PCB exchange time | 6S |
| Feeding type | Rolling |
| Insertion head | 1 - 3/up to 3 |
| Hole position recognition | CCD high-definition industrial camera vision system |
| Control system | Industrial computer + display screen Windows system |
| Machine dimension | L2310*W1560*H1740(mm) |
| Repetition accuracy | ±0.01mm |
| Machine frame | marble |
| Weight | 1800KG |
| Air pressure | 0.55 ± 0.05MPa |
| Power consumption | 2000W |
| Supply voltage | AC220V 60Hz |
| Operating temperature | 5 - 40℃ |
| Operating humidity | 10 - 90%RH |
| Environment requirement | Non-corrosive gas |
