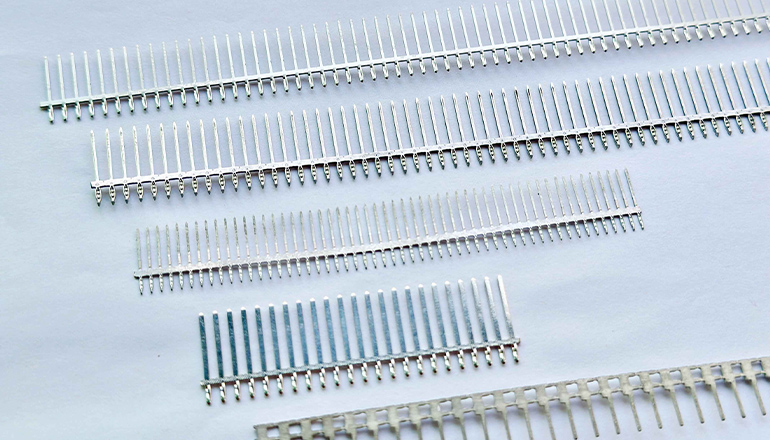

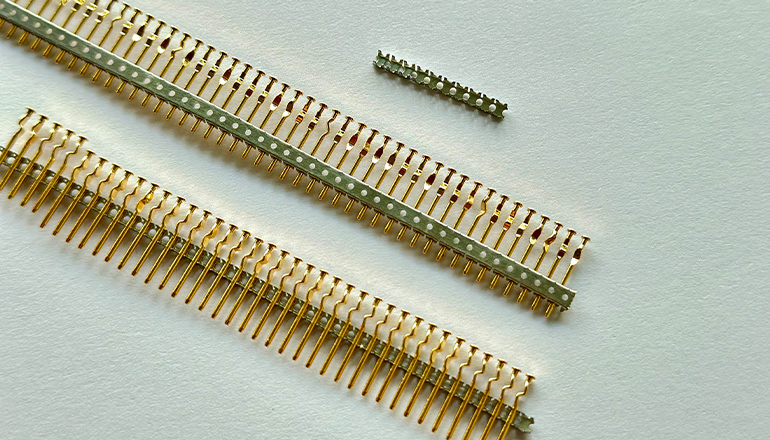

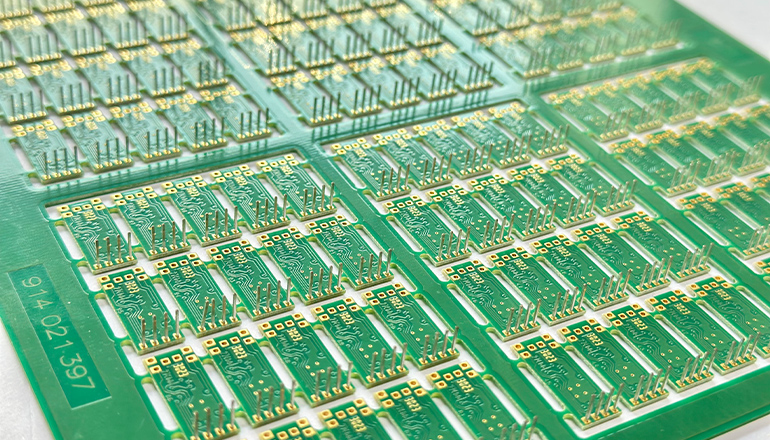

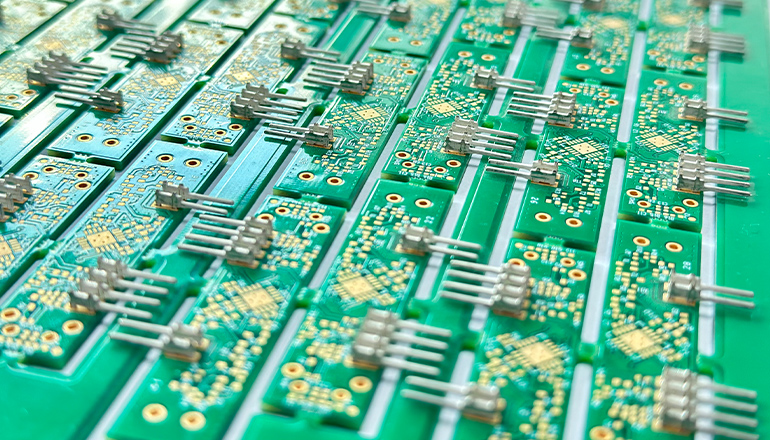

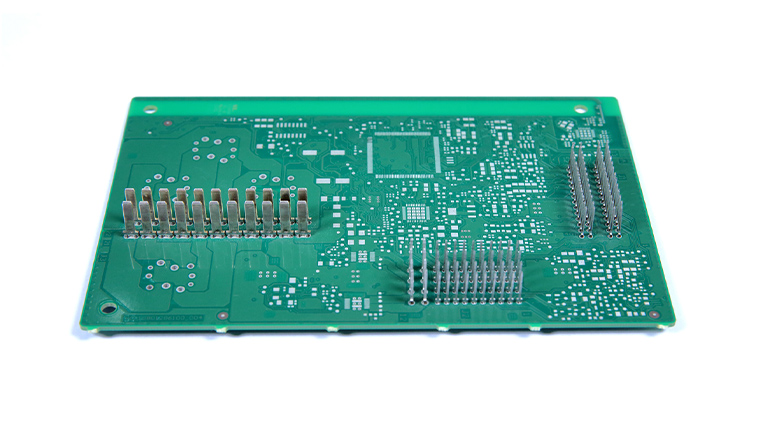

Machine is used to automatically cut the rolled metal pins into single pins before they are accurately insertedonto the PcB driven by cam mechanism with servo motor, PcB platform is rotated and run by X & Y axis. Marbleframe, servo motor and cam mechanism ensure high insertion accuracy. Also, with complete detection andmonitoring,makeseasyoperationand production.
·Marbleframe ensuresthe perpendicularity,flatness, parallelism and accuracy
·Stable XandY axis driven byservo motor
·CAM structure ensures high productivity and repetitive precision
·Real-time insertion force monitoringis available to achieves high-quality production
·Multi-angle DD motor with 0.01 degree increments provides flexible production
·Connection with MES by QR code recognition
| Parameter Name | Parameter Details |
|---|---|
| PCB size max | max: 350*245mm |
| PCB direction | L - R; R - L |
| PCB Support | PCB mold |
| Platform speed | 70mm/min |
| Pin direction | 360° free rotation |
| Insertion speed | 140 - 220 Pcs/Min |
| Communication | RS485/RS232 |
| PCB exchange time | 6S |
| Feeding type | Rolling |
| Insertion head | 1 - 3/up to 3 |
| Hole position recognition | CCD high-definition industrial camera vision system |
| Control system | Industrial computer + display screen Windows system |
| Machine dimension | L2300*W1400*H1700(mm) |
| Repetition accuracy | ±0.01mm |
| Machine frame | marble |
| Weight | About 1700KG |
| Air pressure | 0.55±0.05MPa |
| Power consumption | 1500W |
| Supply voltage | AC220V 60HZ |
| Operating temperature | 5 - 40℃ |
| Operating humidity | 10 - 90%RH |
| Environment requirement | Non-corrosive gas |
